Internal Cylindrical Coil Brushes
Cylindrical coil brushes might be seen on vacuum cleaners, street sweepers or an industrial compound applicator. Also called a shaft cleaning brush, a cylindrical coil brush is a long strip brush wound in a helical fashion to create a cylinder. These can be near any diameter and length, depending on the job they need to perform. Further, some of these internal cylindrical coil brushes or shaft cleaning brushes can be closely wound so that they appear as solid cylinders. Others may have spaces between winds depending on the task at hand. Whatever your need, we can make the cylindrical coil brush to do the work.
Cylindrical coil brushes (shaft cleaning brushes) are spiral wound cylindrical brushes and coil brushes and can be very small (e.g. condenser tube cleaning) to very large (i.e. glass washing) and used in many types of applications. Cleaning applications include: glass washing, condenser tube cleaning, photo processing, plywood dusting, and many more.
Internal Cylindrical Coil Brush
An internal cylinder brush with lead can be coiled free or onto a shaft. Brushes can have left or right hand lead. The brushes can be mounted permanently to shaft with the use of clips, J-bolts or welded.
Applications for internal cylindrical brushes and shaft cleaning brushes are from dusting to polishing to de-burring to cleaning, have been used as an auger to move product in a given direction.
Internal cylinder brushes can be coiled either tightly or with a wide range of leads.
Download Internal Cylindrical Coil Brushes – PDF
NOISE CONTROL • AIR FLOW CONTROL • SMOKE CONTROL

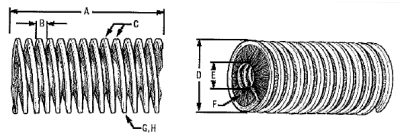

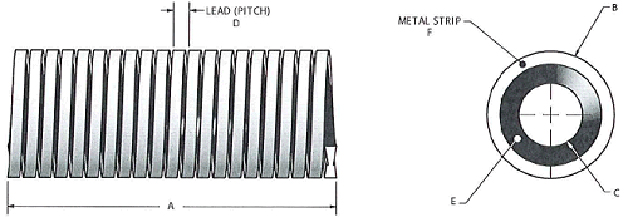

Internal Cylindrical Coil Brushes Design Specification
For more information on Flex-guard Internal Cylindrical Coil Brushes, please complete the form below and press Send. All measurements are in inches.
Download Internal Cylindrical Coil Brushes – PDF
Please indicate any critical tolerances
•We manufacture the brush to fit “snug” on the customer’s shaft unless otherwise specified
•Brushes are wound right hand unless otherwise specified
•Brushes are supplied un-mounted
