External Cylindrical Coil Brushes

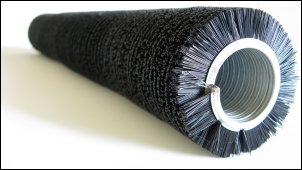

Cylindrical coil brushes might be seen on vacuum cleaners, street sweepers or an industrial compound applicator. A cylindrical coil brush is a long strip brush wound in a helical fashion to create a cylinder. These can be nearly any diameter and length, depending on the job they need to perform. Further, some of these cylindrical coil brushes can be closely wound so that they appear as solid cylinders. Others may have spaces between winds depending on the task at hand. Whatever your need, we can make the cylindrical coil brush to do the work.

Cylindrical coil brushes are spiral wound cylindrical brushes and coil brushes and can be very small (e.g. condenser tube cleaning) to very large (i.e. glass washing) and used in many types of applications. Cleaning applications include: glass washing, condenser tube cleaning, photo processing, plywood dusting, and many more.

MOUNTED COIL BRUSH

Cylindrical coil brushes are made from spiral wound cylindrical brushes. They can be very small (e.g. condenser tube cleaning) to very large (i.e. glass washing) and used in many other types of applications. Cleaning applications include:  glass washing, condenser tube cleaning, photo processing, plywood dusting, and many more.

Other applications include: dusting, polishing, de-burring and cleaning. Internal Cylindrical Coil Brushes have been used as an auger to move product in a given direction.

The brushes can be coiled either tightly or with a wide range of leads.

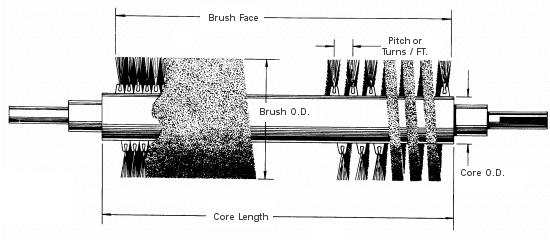

Cylinder brush with lead can be coiled free or onto a shaft. Brushes can have left or right hand lead. The brushes can be mounted permanently to the shaft with the use of clips, J-bolts or welded.

Applications consist of dusting, polishing, de-burring, and cleaning. External Cylindrical Coil Brushes have been used as an auger to move product in a given direction. The brushes can be coiled either tightly or with a wide range of leads.

Download External Cylindrical Coil Brushes – PDF

NOISE CONTROL • AIR FLOW CONTROL • SMOKE CONTROL

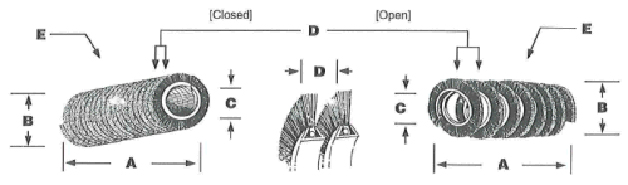

External Cylindrical Coil Brushes Design Specification

Let us help you design the right Cylindrical Coil Brush for your application. For more information on Flex-Guard External Cylindrical Coil Brushes Design Specification, please complete the form below and press Send.
All measurements are in inches.

Please indicate any critical tolerances

•We manufacture the brush to fit “snug” on the customer’s shaft unless otherwise specified
•Brushes are wound right hand unless otherwise specified
•Brushes are supplied un-mounted
