Flex-Guard Brush Seals
Flex-Guard brush seals work well over flat or irregular surfaces. A brush seal can be used in many applications. A Flex-Guard brush seal is extremely durable and versatile and there are many materials and sizes available for each brush shield application. Flex-Guard have stock brush seals ready for immediate shipment and a custom brush seal can be made quickly for a unique application.
CLICK HERE FOR CATALOG OF FLEX-GUARD BRUSH TABLES, BRUSH SEALS AND MOUNTINGS

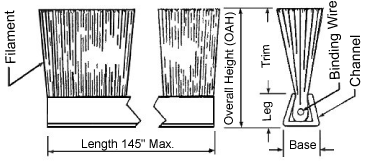

Brush Seal Specifications
All measurements are in inches.
| Strip Designations |
Dimensions and Tolerances |
Minimum Overall Height |
Filament Dia. Size |
|||
| Size | No. | Ltr. | Base ± .010″ | Leg ± .015″ | OAH ± .032 | Range |
| 1/4″ | 2 | AA | .100″ | .105″ | .310″ | .003″ – .014″ |
| 5/16″ | 2 1/2 | A | .125″ | .125″ | .310″ | .003″ – .020″ |
| 3/8″ | 3 | B | .147″ | .148″ | .430″ | .003″ – .024″ |
| 1/2″ | 4 | C | .186″ | .202″ | .500″ | .003″ – .028″ |
| 5/8″ | 5 | D | .230″ | .254″ | .500″ | .003″ – .032″ |
| 3/4″ | 6 | E | .275″ | .290″ | .750″ | .004″ – .055″ |
| 7/8″ | 7 | F | .297″ | .350″ | .750″ | .006″ – .060″ |
| 1″ | 8 | G | .312″ | .411″ | 1.000″ | .006″ – .060″ |
CLICK HERE FOR CATALOG OF FLEX-GUARD BRUSH TABLES, BRUSH SEALS AND MOUNTINGS
NOISE CONTROL • AIR FLOW CONTROL • SMOKE CONTROL
A METAL CHANNEL STRIP BRUSH OFFERS MAXIMUM DESIGN FLEXIBILITY:
10 Standard Sizes
Widths from .100″ to .465″
Formed Shapes
High Volume Production
Repeatable dimensions
Close Tolerances
Coils, Internal and External
Ideal for Assemblies
Brush Containment Systems
